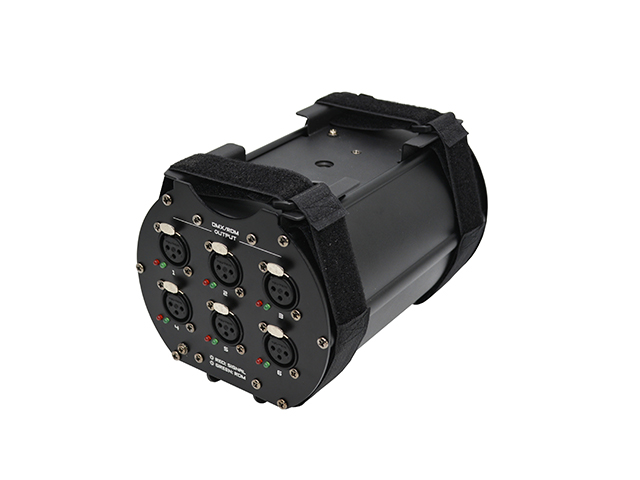

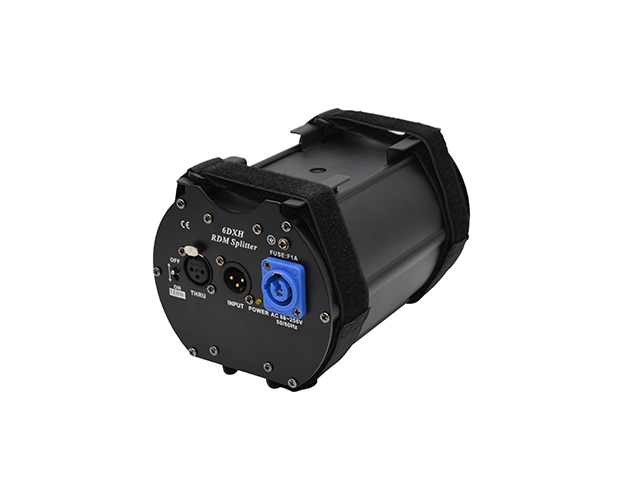

1381-6DXH RDM Splitter

  • PID:1381
  • Wechat:TC18928719131,TC18928719182
  • Phone: (8620)36399170
  • Tel: (8620)36399170
  • Email: info@showart.com.cn
  • FEEDBACK

Technical Parameter

Bidirectional data transfer

Input RDM signal or DMX signal

Six-way RDM splitter with one input

High Voltage Protection

Complete electrical isolation between all inputs and outputs

Wide voltage input: AC 88~256V  50/60Hz

NEUTRIK 3pins XLR (Option: XLR Pin5)

Separate signal splitter system and individual LED light of each channel

PowerCON connector is useful for any rental and mobile shows

Multiple installation methods to meet variety places use purpose

Dimension: 186mm×128mm×124mm

Net Weight : 0.9kg






Up to CE standard, UL standard and GB 7000.15-2000 standard
