1336-4DXHW Distibutor

  • PID:1336
  • Wechat:13825163720; 18928719131
  • Phone: (8620)36399170
  • Tel: (8620)36399170
  • Email: info@showart.com.cn

Advantaged Feature

 Multiple Installation Methods 4DX DMX distributor

 High Voltage Protection

 Independent input and output signal (include earth cable of signal)

 Separate signal amplifier system and individualLED light of each channel

PowerCON connector is veryuseful for any rental and mobile shows.

 Multiple installation methods to meet variety placesuse purpose.

 Wide input stable electric power supply: AC88 ~256V

 Light weight

Technical Parameter

 DMX512/1990 Standard


 Standard: XLR Pin3

 Option: XLR Pin5 up to order

 Four-way DMX distributor with one input

 Input Voltage: AC88~256V 50/60Hz

 Dimension: 217mm ×124mm × 48mm

 Net Weight: 0.9 Kg

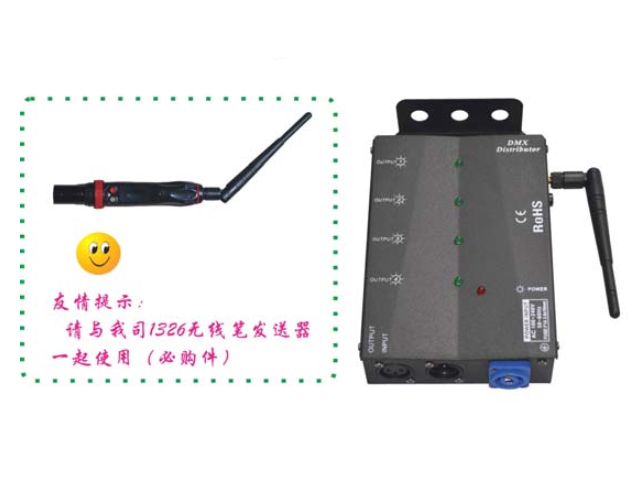

 Standard DMX512 signal; 2.4G wireless DMX512 receiver

 Communication distance:300m (visible distance)


 Up to CE standard, UL standard and GB7000.15-2000 standard
