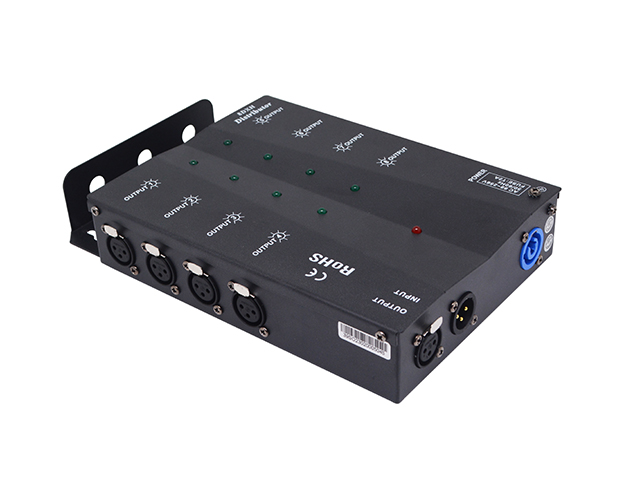

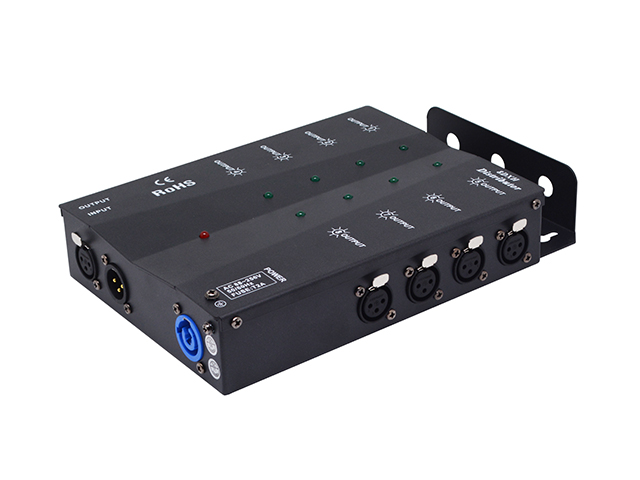

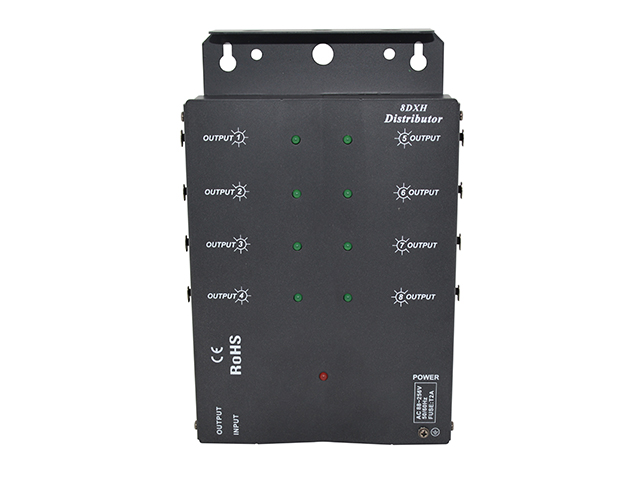

1339-8DXH Distributor

  • PID:1339
  • Wechat:13825163720; 18928719131
  • Phone: (8620)36399170
  • Tel: (8620)36399170
  • Email: info@showart.com.cn

Advantaged Feature

Multiple Installation Methods 8DX DMX distributor

High Voltage Protection

Independent input and output signal (include earthcable of signal)

Separate signal amplifier system and individual

LED light of each channel

PowerCON connector is very useful for any rental and mobile shows.

Multiple installation methods to meet variety places use purpose.

Wide input stable electric power supply: AC88 ~256V

Light weight

Technical Parameter

DMX512/1990 Standard


Standard: XLR Pin3

Option: XLR Pin5 up to order

Eight-way DMX distributor with one input

Input Voltage: AC88~256V 50/60Hz

Dimension: 255mm×159mm×45mm

Net Weight:1.28 Kg


Up to CE standard, UL standard and GB7000.15-2000 standard
