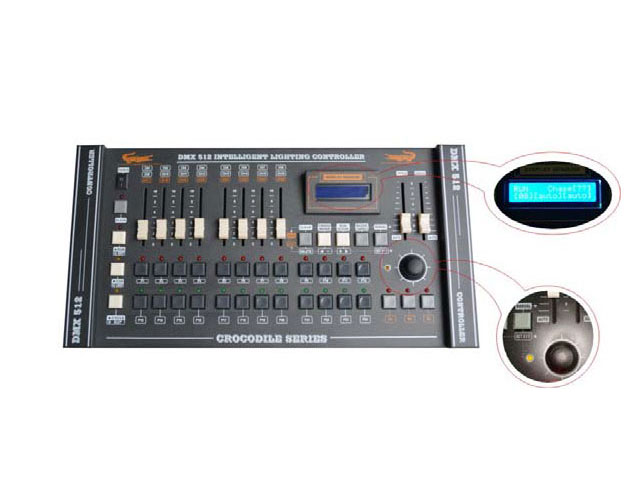

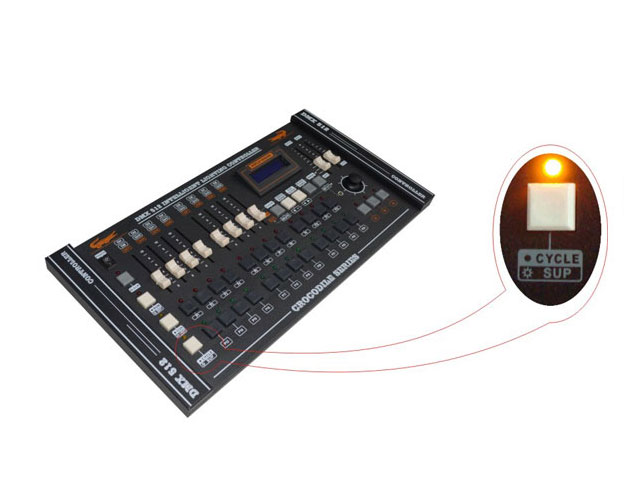

1301-CROCODILE 2024 console

  • PID:1301
  • Wechat:TC18928719131,TC18928719182
  • Phone: (8620)36399170
  • Tel: (8620)36399170
  • Email: info@showart.com.cn

Technical Parameter

 Auto save last running data when power off or disconnect electric suddenly. Console will auto run continue while power ON or connect to electric

 Set X,Y to light joystick of single fixture

 Select one or multi chases to run in cycle

 Select multi chases to run at same time

 DMX512/1990 Standard 504 channels

 LCD display with backlight

 Up to 20 scanners may be connected with a maximum of +24 channels each 24 Dimmer channels

 8 slider for manual control of channels

 Assignable joystick for ease of movement

 24 chases run in circularly, Max 40 steps each chase

 Can run 8 chases simultaneously

 960 chase steps

 Range of cross time: 0s-25.5s

 Range of speed time: 0.1s-25.5s

 Each chase speed and cross time can be saved automatic

 512K high capacity memory card

 Auto save data

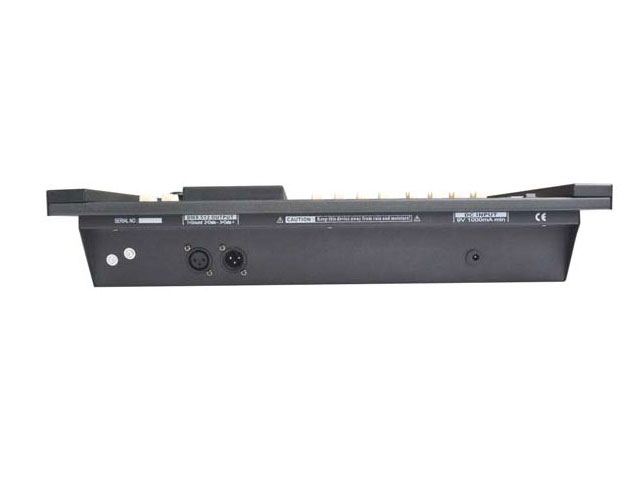

 DMX signal output connector: XLR-D3F

 Power supply: DC9V 1000mA

 Dimension: 485mm×250mm×91mm

 Net Weight: 3.8Kg

Up to CE standard, UL standard and GB7000.15-2000 standard
