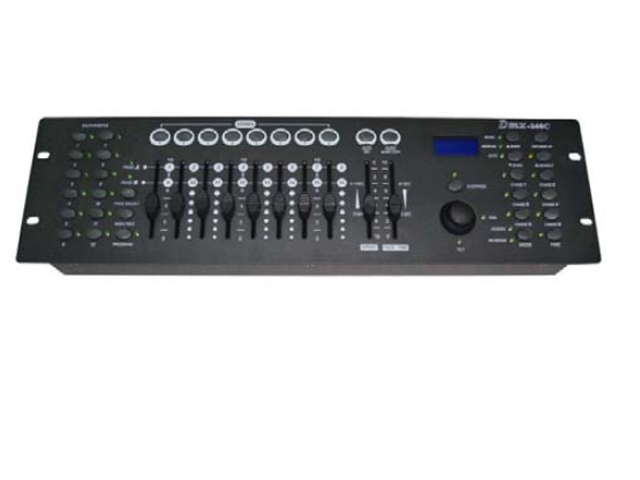

1329-DMX-240C Console

  • PID:1329
  • Wechat:TC18928719131,TC18928719182
  • Phone: (8620)36399170
  • Tel: (8620)36399170
  • Email: info@showart.com.cn
  • FEEDBACK

Technical Parameter

 12 scanners of 16 channels each

 30 banks of 8 programmable scenes

 6 programmable chase of 240 scenes each

 8 slider for manual control of channels

 Assignable joystick for ease of movement

 File dump allows data to be sent for received between 2 units

 Auto mode program controlled by speed and fade time sliders fade time/assign fade time reversible DMX channels fixture to react in opposition to others in a chase

 8 channel or 16 channel mode

 Fine adjustment for joystick pan and tilt

 Blackout master button

 Manual override button allow you to grab any fixture on the fly built in microphone for music trigger

 Midi control over banks, chases and blackout

 DMX polarity selector power failure memory

 3U space 19" rack mount

 Power input: DC 9V 1000mA

 Audio input: by built-in microphone or line in, 100mv-1vpp

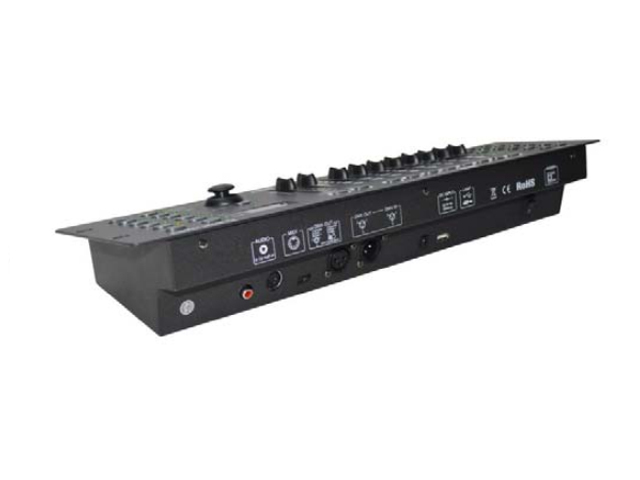

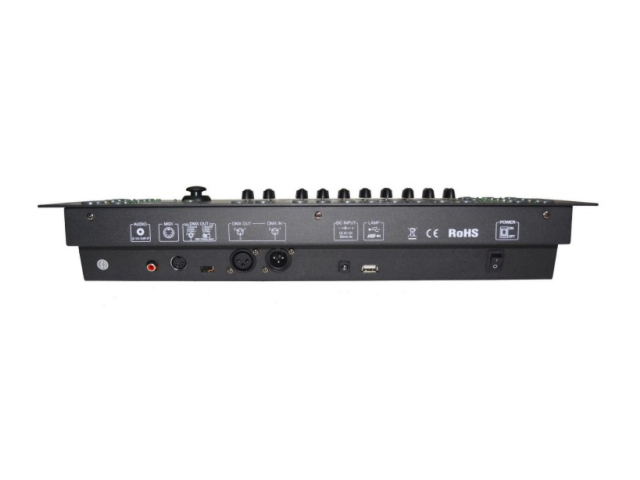

 DMX in/out: 3 pin male/female XLR

 Midi in: 5 pin multiple socket

 Dimension: 482mm × 133mm × 80mm

 Net Weight: 2.3kg



Up to CE standard, UL standard and GB7000.15-2000 standard
