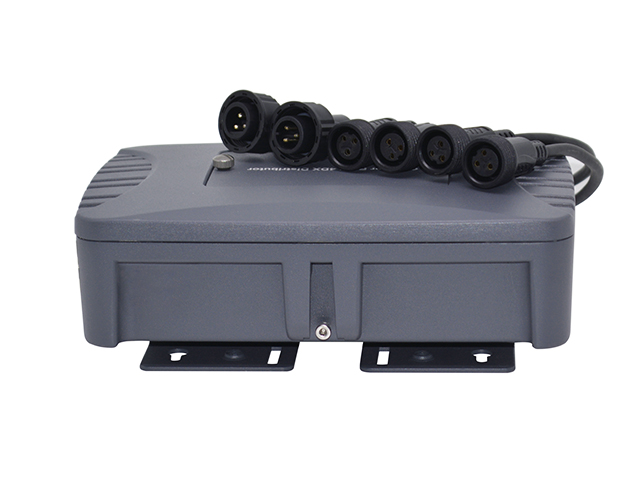

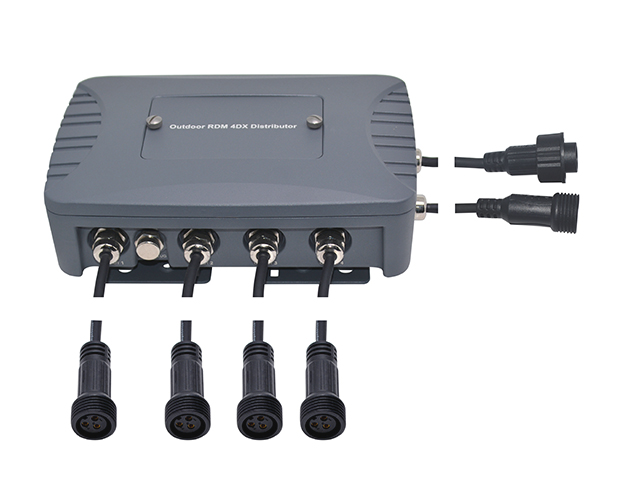

1366—Die-cast Aluminum Outdoor 4DX Distributor

  • PID:1366
  • Wechat:13825163720; 18928719131
  • Phone: (8620)36399170
  • Tel: (8620)36399170
  • Email: info@showart.com.cn
  • FEEDBACK

Technical Parameter

* DMX512/1990 Standard

* Four-way DMX distributor with one input

* Independent input and output signal (include earth cable of signal)

* Each input/output port is a waterproof XLR connector, and each DMX output port has an independent driver. LED indicators indicate signal status

* Cast aluminum material, weatherproof, UV resistant

* Technology parameter

* Power input: AC88~ 256V 50/60Hz

* Dimension: 225mm×150mm×85 mm

* Net weight: 1.75kg(not include AC&DMX cable )


Up to CE standard, UL standard and GB7000.15-2000 standard
