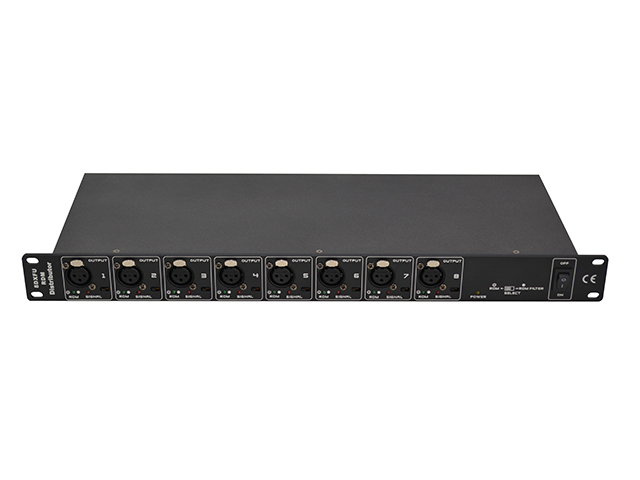

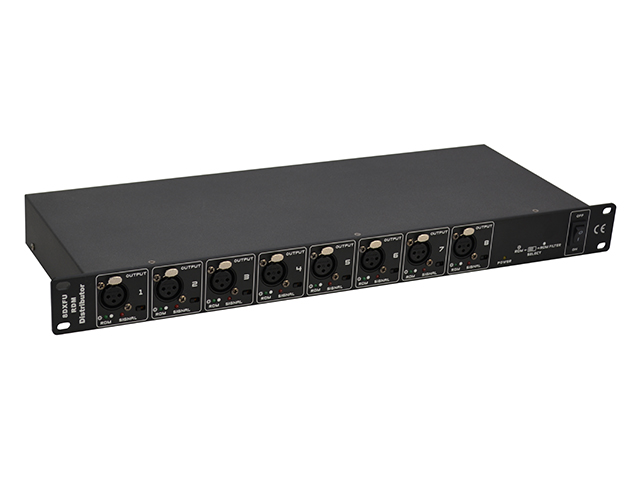

1367-8DXFU RDM Distributor

  • PID:1367
  • Wechat:13825163720; 18928719131
  • Phone: (8620)36399170
  • Tel: (8620)36399170
  • Email: info@showart.com.cn
  • FEEDBACK

Technical Parameter

Bidirectional data transfer, one-way signal input and eight-way output.

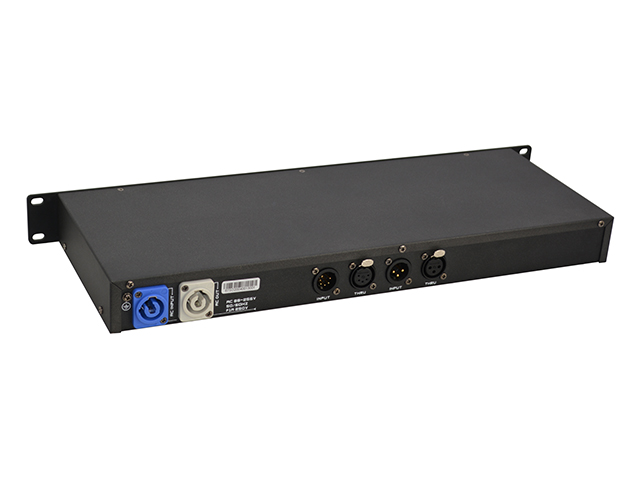

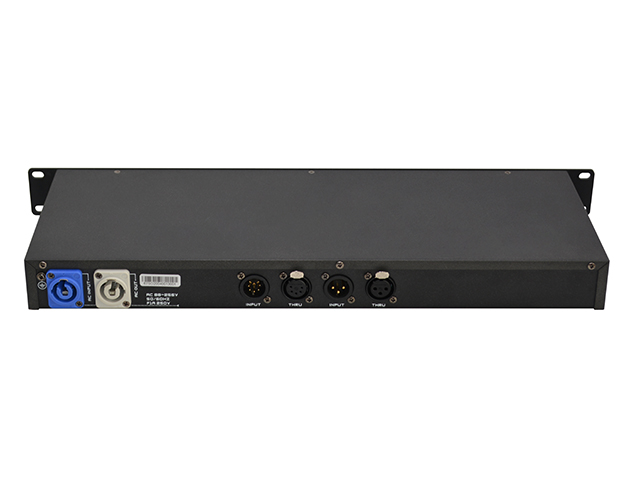

With a pair of 5 pins and a pair of 3 pins RDM signal input interface.

Eight-way output can switch to start up or shut down RDM signal freely.

Input and output ports use High Voltage Protection.

Independent signal input and signal output.

Wide input stable electric power supply, suitable for voltage input of different countries.

Neutrik 3pins XLR and 5pins XLR (Option: all XLR Pin5).

Individual RDM selection indicator and LED light of each channel.

Input Voltage: AC88~256V 50/60Hz

Dimension: 19" 1U, 482mm ×173mm × 46mm

Net Weight: 1.7Kg


Up to CE standard, UL standard and GB7000.15-2000 standard
