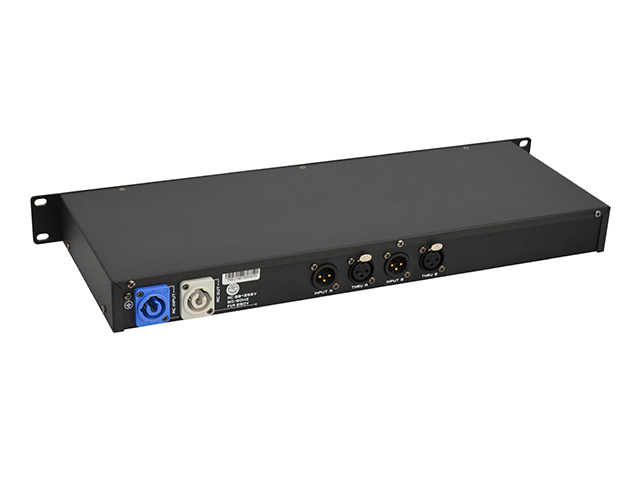

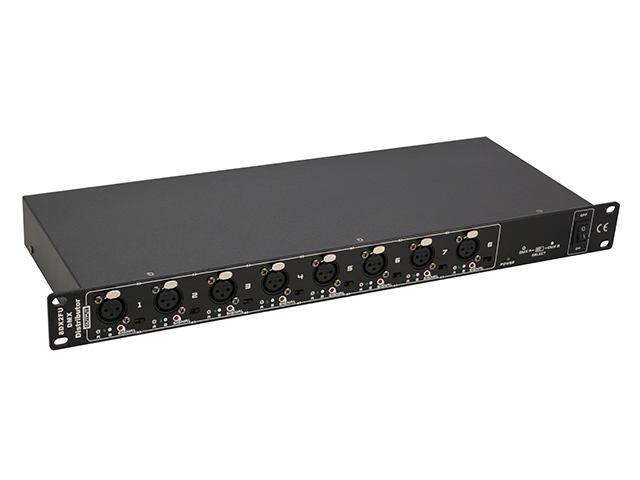

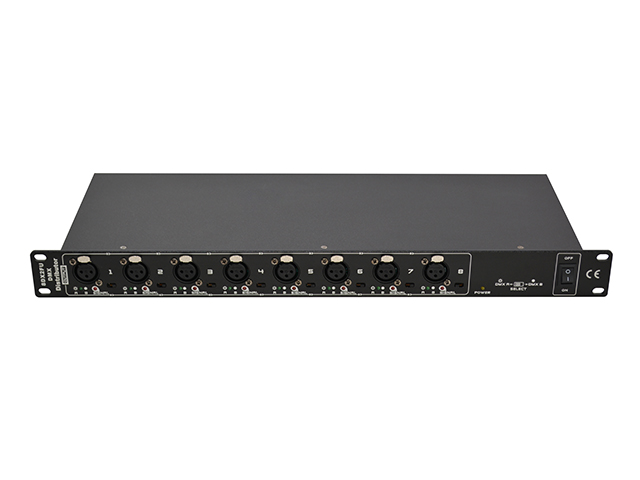

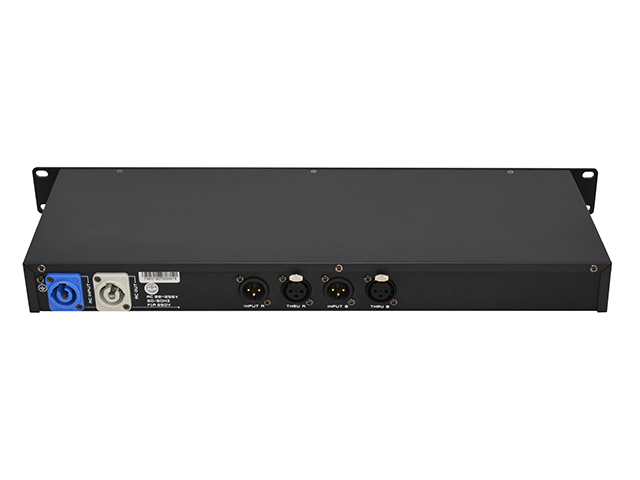

1374- 8DX2FU DMX Distributor

  • PID:1374
  • Wechat:13825163720; 18928719131
  • Phone: (8620)36399170
  • Tel: (8620)36399170
  • Email: info@showart.com.cn
  • FEEDBACK

Technical Parameter

DMX 512/1990 Standard.

Independent 2-way signal input 3 pins interface, which are DMX A and DMX B.

Eight-way output can switch freely input signal is DMX A or DMX B.

Input and output ports use High Voltage Protection.

Independent input and output signal.

Wide input stable electric power supply, suitable for voltage input of different countries.

Neutrik 3 pins XLR (Option: XLR Pin5).

Individual RDM selection indicator and LED light of each channel.

Input Voltage: AC88~256V 50/60Hz.

Dimension: 19" 1U, 482mm ×173mm × 46mm

Net Weight: 1.7Kg

Up to CE standard, UL standard and GB7000.15-2000 standard
