Technical Parameter

DMX 512/1990 Standard

48 DMX channels with optical isolated output

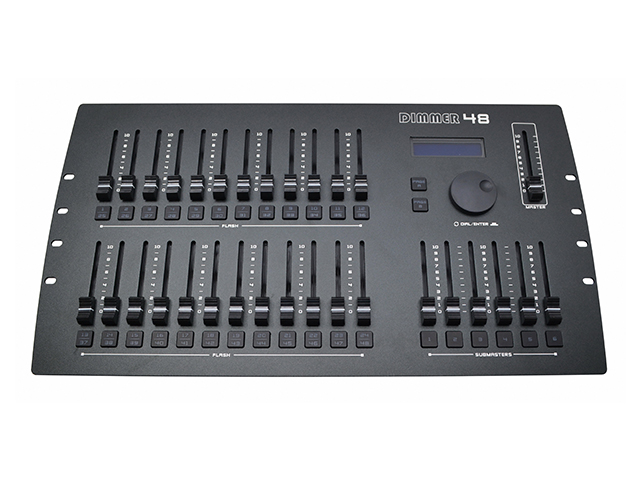

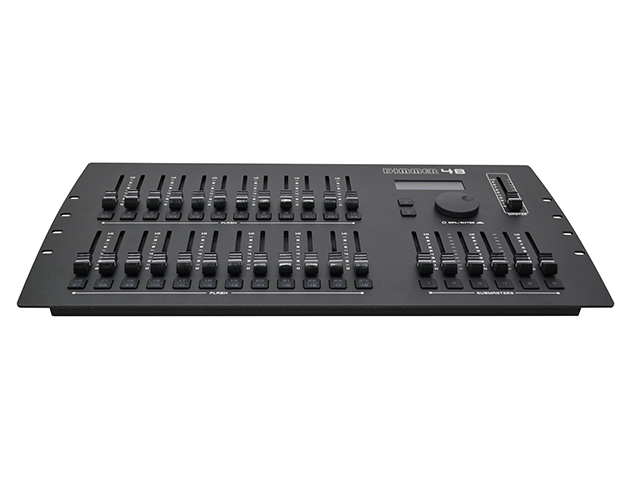

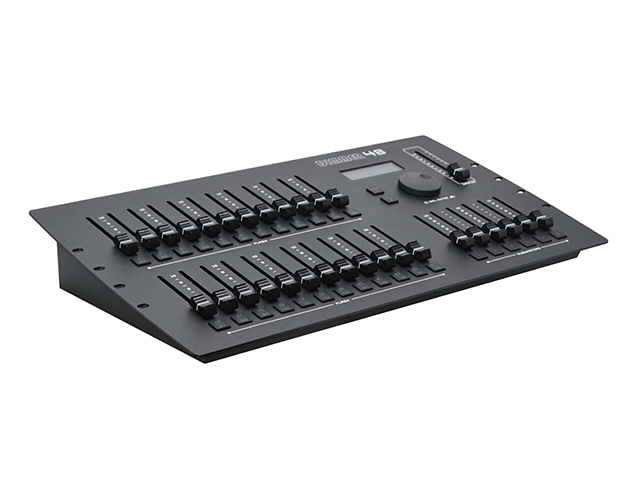

24 channel faders×2 pages, 24 Flash buttons×2 pages

6 Submaster faders, 6 Submaster buttons

1 Master faders

RS232 connect central control

You can dial the wheel to check the current channel value.
Press and hold the wheel and then press the Submaster button to save the Submaster

Support Master and Slave setting to expand the channel, which can be expanded to 192 channels

Use Page A and Page B buttons to select the channel page

LCD display

Power failure memory

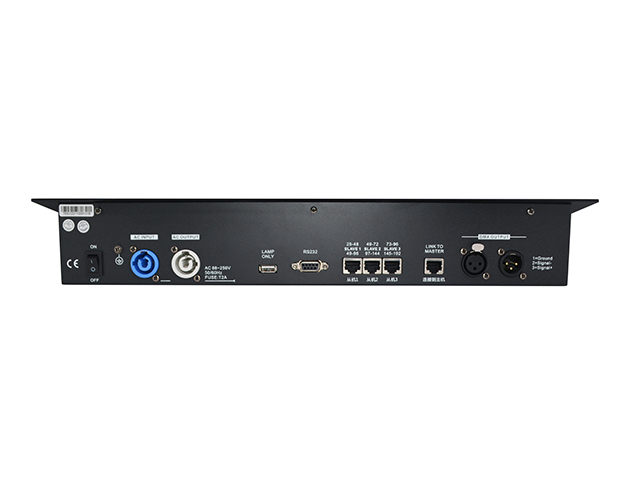

DMX output: XLR-D3F

Dimension: 482 x 265 x 75 mm

Voltage input: AC88~256V 50/60Hz

Net weight: 2.65KG

Up to CE standard, UL standard and GB 7000.15-2000 standard
