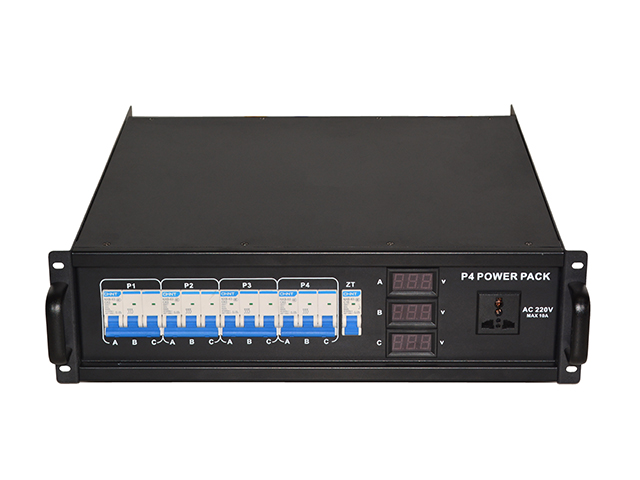

1448-P4 POWER PACK
- PID：1448
- Wechat：13825163720; 18928719131
- Phone: (8620)36399170
- Tel: (8620)36399170
- Email: info@showart.com.cn
- FEEDBACK
Technical Parameter
* Power input: three-phase five wire AC 380V, 50Hz (A,B, C, N, PE)
* Power output: three-phase four wire AC 380V, single-phase AC 220V

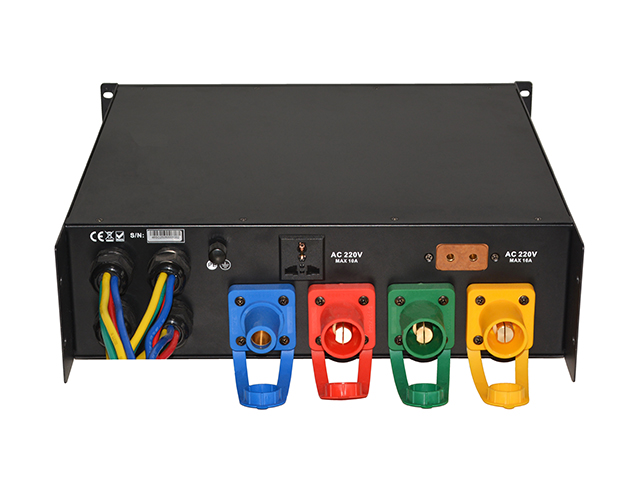

* Input: 400A rhinoceros plug (yellow-A, green-B, red-C, blue-N), total power 56KW
* Output: P1, P2, P3 each have a maximum of 63A, and the sum of the universal three hole socket and the rubber wood socket has a maximum of 16A
* Overload and short circuit protection
* When the output is short-circuited or overloaded for a long time, the air switch is quickly off to protect the lighting control equipment and lighting fixtures
* Circuit breakers: NXB-63, C63A, 3P 3pcs, NXB-63, C16A, 1P 1pcs
* Dimension: 482X485X145mm
* Net weight: 11.2kg
* Power output: three-phase four wire AC 380V, single-phase AC 220V
* Input: 400A rhinoceros plug (yellow-A, green-B, red-C, blue-N), total power 56KW
* Output: P1, P2, P3 each have a maximum of 63A, and the sum of the universal three hole socket and the rubber wood socket has a maximum of 16A
* Overload and short circuit protection
* When the output is short-circuited or overloaded for a long time, the air switch is quickly off to protect the lighting control equipment and lighting fixtures
* Circuit breakers: NXB-63, C63A, 3P 3pcs, NXB-63, C16A, 1P 1pcs
* Dimension: 482X485X145mm
* Net weight: 11.2kg
