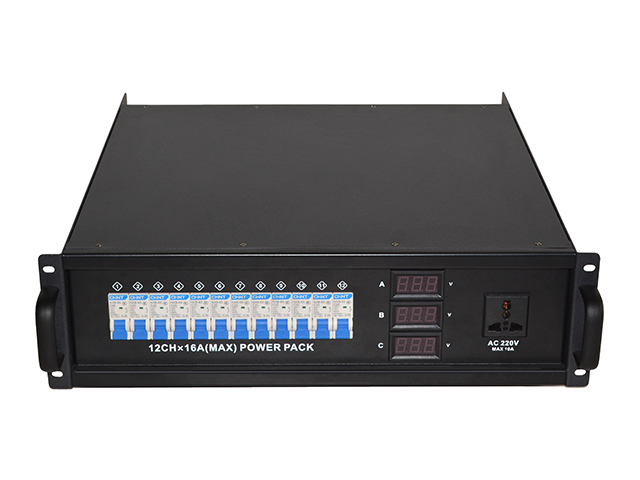

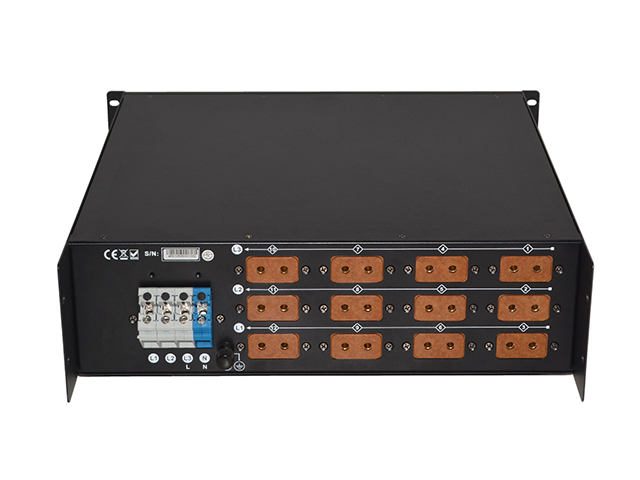

1446-12CH Power Pack
- PID：1446
- Wechat：13825163720; 18928719131
- Phone: (8620)36399170
- Tel: (8620)36399170
- Email: info@showart.com.cn
- FEEDBACK
Technical Parameter
* The voltmeter directly displays the three-phase input voltage of A, B, and C
* Power supply adopts three-phase five-wire input system, safe and reliable.* 12-channel power output, plastic wood plug interface, wear-resistant and high temperature resistant
* LED indicator for each output
* Output current: up to 16A per channel
* Power output: up to 3.5KW per channel
* Overload and short circuit protection
* When the output is short-circuited or overloaded for a long time, the air switch is quickly off to protect the lighting control equipment and lighting fixtures
* Air switch: 12pcs, directly control the output circuit on or off.
* Power output : 12 pcs
* 1-channel universal three hole output current maximum 10A
* Dimension: 482*485*145mm
* Net weight: 10.6kg
