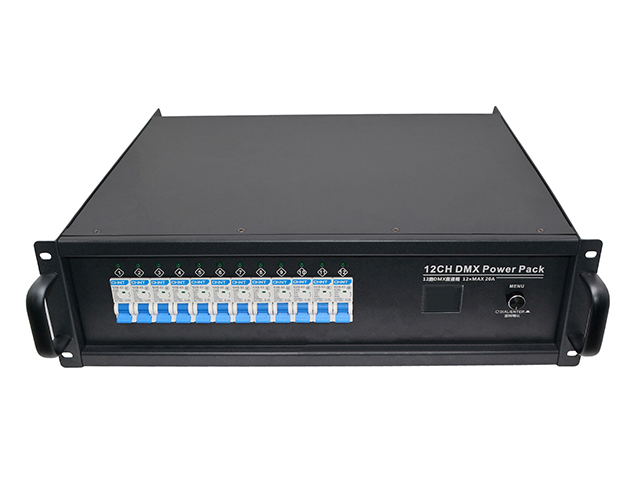

1436-12CH Intelligent Power Pack
- PID：1436
- Wechat：13825163720; 18928719131
- Phone: (8620)36399170
- Tel: (8620)36399170
- Email: info@showart.com.cn
- FEEDBACK
Technical Parameter
* Support DMX 512 & ARTNET signal control.

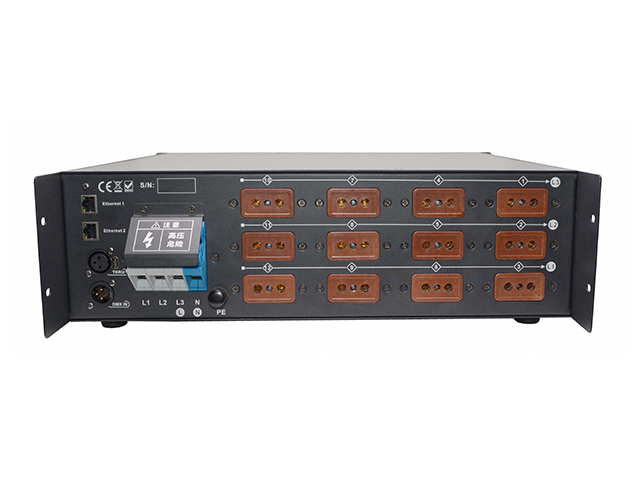

* Power supply adopts three-phase five-wire input system, safe and reliable.
* 12-channel power output, plastic wood plug interface, wear-resistant and high temperature resistant
* LED indicator for each output
* Output current: up to 16A per channel
* Power output: up to 3.5KW per channel
* Overload and short circuit protection
* When the output is short-circuited or overloaded for a long time, the air switch is quickly off to protect the lighting control equipment and lighting fixtures
* TFT display shows parameters. The menu can be switched between Chinese and English.
* Air switch: 12pcs, directly control the output circuit on or off.
* DMX ports: 2 pcs
* Network ports: 2pcs
* Power output: 12 pcs
* Dimension: 482*485*145mm
* Net Weight：10.6KG
* Power supply adopts three-phase five-wire input system, safe and reliable.
* 12-channel power output, plastic wood plug interface, wear-resistant and high temperature resistant
* LED indicator for each output
* Output current: up to 16A per channel
* Power output: up to 3.5KW per channel
* Overload and short circuit protection
* When the output is short-circuited or overloaded for a long time, the air switch is quickly off to protect the lighting control equipment and lighting fixtures
* TFT display shows parameters. The menu can be switched between Chinese and English.
* Air switch: 12pcs, directly control the output circuit on or off.
* DMX ports: 2 pcs
* Network ports: 2pcs
* Power output: 12 pcs
* Dimension: 482*485*145mm
* Net Weight：10.6KG
