1422-18 Channel Simple DMX Console_TONTRON PHOTOELECTRIC CO.,LIMITED

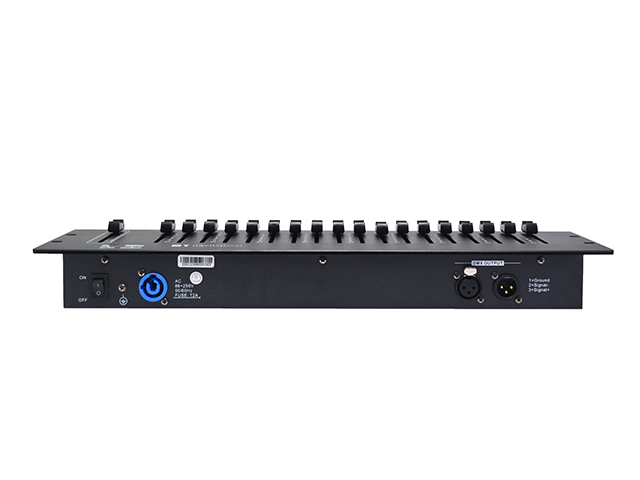

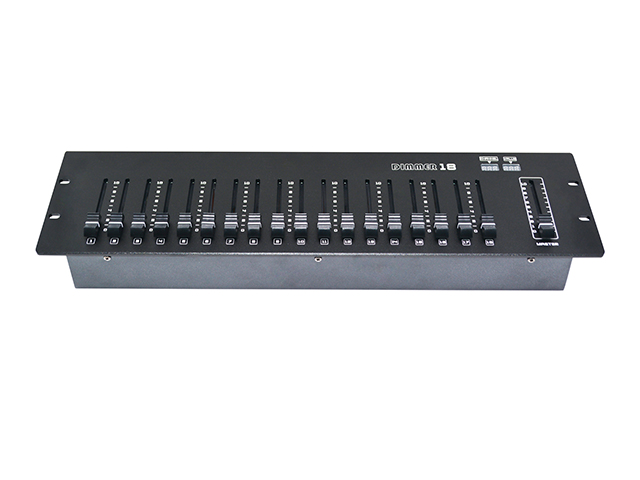

1422-18 Channel Simple DMX Console

Technical Parameter

* DMX 512/1990 Standard

* 18 DMX channels with optical isolated output

* Master fader can adjust the values of 1-18 channels and provides total control towards overall DMX output

* Faders 1-18 can be used as dimming faders or control the brightness of all connected lights

* Dual LED display shows current channel number and DMX value

* Power failure and restart automatically reads the current value of each fader

* DMX output : XLR-D3F

* Power input : AC88～256V 50/60Hz

* Dimension : 482mm×132mm×50mm

* Net weight : 1.75KG
