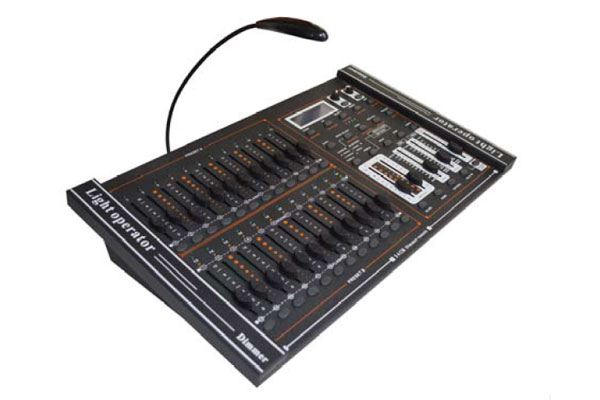

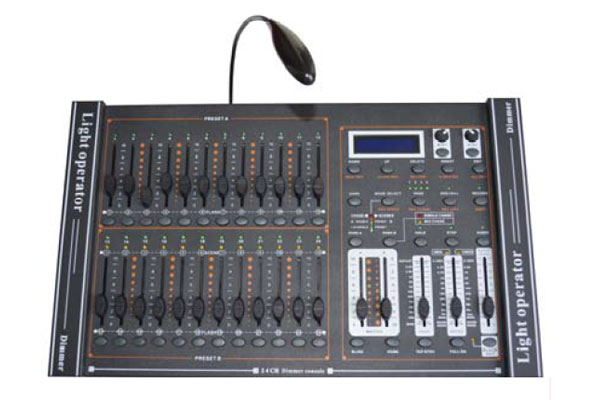

1314-24CH Dimmer console

  • PID:1314-24CH
  • Wechat:13825163720; 18928719131
  • Phone: (8620)36399170
  • Tel: (8620)36399170
  • Email: info@showart.com.cn
  • FEEDBACK

Technical Parameter

24-channel DMX-512 dimming console

4 pages with 48 scenes each yields 48 total playback faders (simultaneous playback)

48,000 programmable steps

2 programmable aux buttons

Adjustable chase and fade times

Run steps forward or backward could be changed at any time

Re-assignable channels

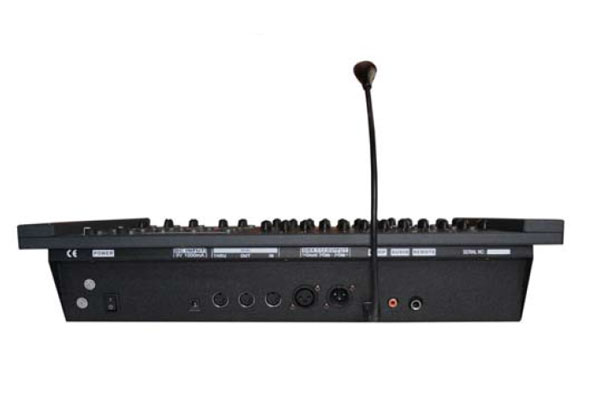

LED lamp connector 3-pin DMX connections

Power input: DC9V 1000mA

Dimension: 485mm × 290mm ×98mm

Net Weight: 4.5kg



Up to CE standard, UL standard and GB7000.15-2000 standard
