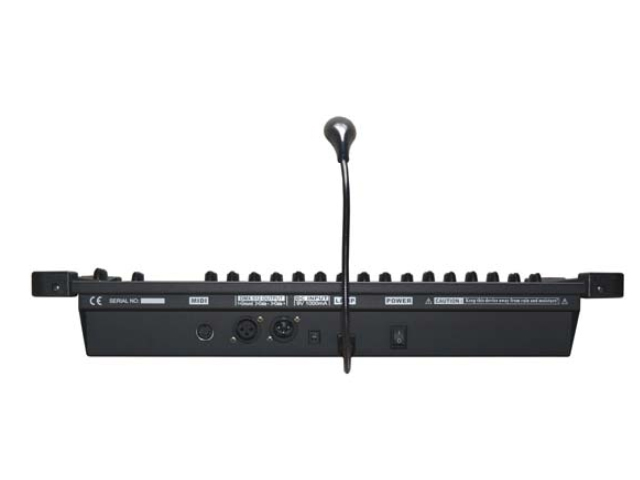

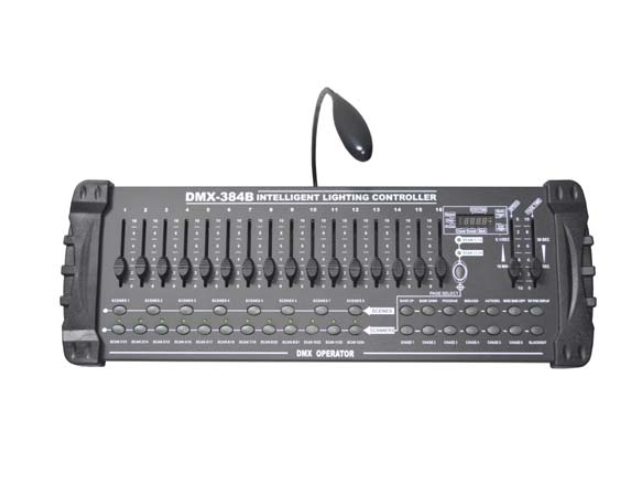

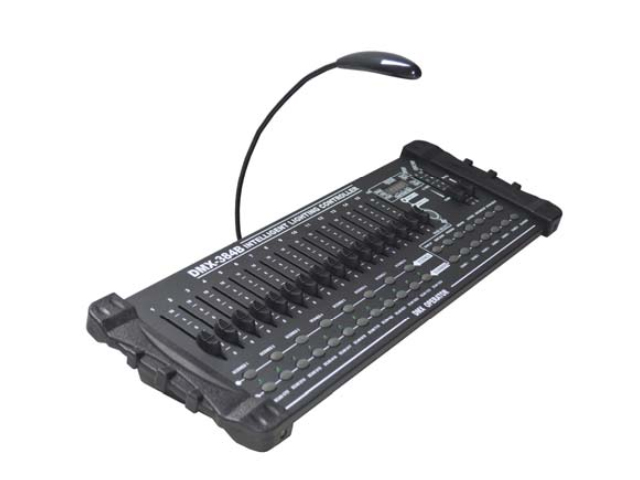

1316-DMX-384B Console

  • PID:1316
  • Wechat:13825163720; 18928719131
  • Phone: (8620)36399170
  • Tel: (8620)36399170
  • Email: info@showart.com.cn
  • FEEDBACK

Technical Parameter

* DMX512/1990 Standard

* Total of 384 output channels

* 30 banks have 8 programmable scenes

* 16 slider for manual control of channels

* Run last CHASE or BANK continuous when power on again

* Midi control over banks, chases and blackout

* Record up to 6 programmable chases with fade time and speeds

* LED function and program display

* Built in microphone for music triggering

* Auto mode program controlled by fade time sliders

* DMX in/out: 3 pin male/female XLR

* LED lamp connector

* Power input: DC 9V 1000mA

* Dimension: 520mm×183mm×73mm

* Net Weight: 2.7KG



Up to CE standard, UL standard and GB7000.15-2000 standard
