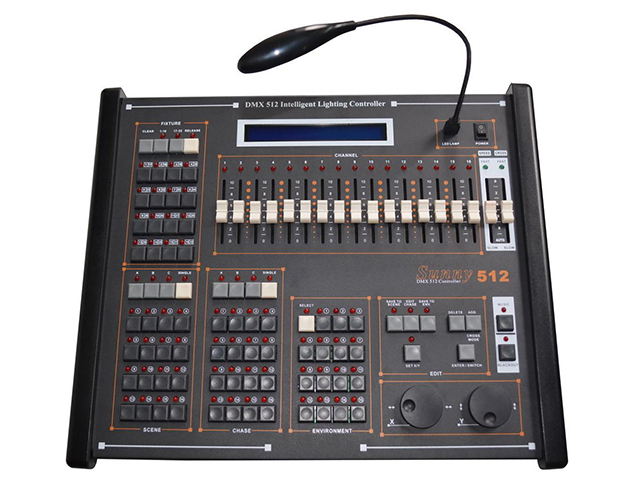

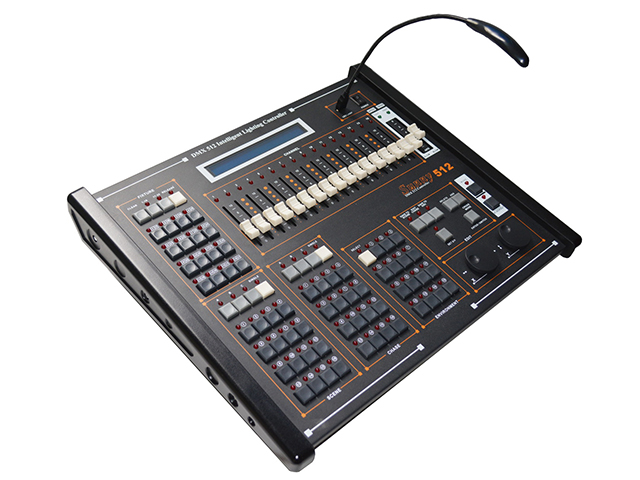

Technical Parameter

* DMX512/1990 standard 512 DMX control channels

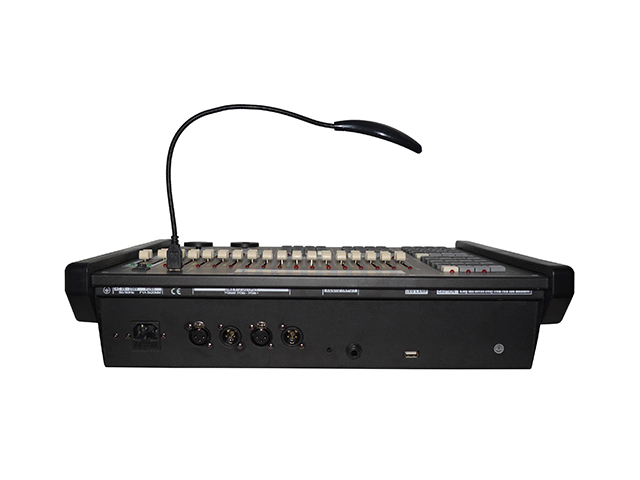

* 4 output with separate optical isolated

* Up to 32 scanners may be connected with a maximum of 16 channels each

* A large back light LCD to display operation parameters

* 16 channel faders plus 1 speed and 1 cross control fade

* 1600 chase steps maximum. 48 chases - up to 99 steps each. Speed and cross time of each step can be set separately
Speed adjustable by music active or manual mode

* SPEED fade time range is 0.01s-25.5s and CROSS fade time range is 0s-25.5s and the total time amount of current status will be program step time

* 48 scenes can be used directly

* 8 chases and 48 scenes can run at the same time and 32 scanners can be selected together

* The X/Y channels of different fixtures can be controlled by PAN/TILT wheel together

* 16 Bit control for PAN/TILT fine adjustment

* 15 environment programs to output the combination, which are composed of different scenes, chases and manual  output quickly

* The music trigger source can be selected between audio line input or internal microphone

* Easy to learn and operate

* The Data auto-saves. (Through the electronic memory storage and it can be changed freely)

* High performance switching power supply, with extremely low power harmonious distortion and wide range of voltage, suit for the requirement of different country simultaneously

* LED lamp connector

* Power input: AC88-256V 50/60Hz

* Dimension: 498mm × 420mm × 115mm

* Net Weight: 6.5GK


① During program running, the program will run in preset speed when SPEED & CROSS faders at AUTO position otherwise the running speed will be total amount of current SPEED & CROSS faders.

② When run Chase and environment program, press CROSS ode button to change CROSS mode between all channel mode or only X/Y mode.

③ After set PAN/TILT wheel, the faders and PAN/TILT wheel could control same channel value together (faders change channel value and PAN/TILT wheel fine adjust value).
