1350-RHINO U240A Console

Technical Parameter

* 12 scanners of 16 channels each

* 6 programmable chases have 30 banks each

* 20 banks have 8 programmable scenes each

* 8 slider for manual control of channels

* 2 assignable wheels for easy of movement

* Auto mode program controlled by speed and fade time sliders

* All fade time adjustable

* In fade mode, ALL (all channel) or X/Y only could be selected separately.

* Reversible DMX channels fixture to react in opposition to others in a chase

* 8 channel or 16 channel mode

* Fine adjustment for wheel PAN and TILT

* Blackout master button

* Manual override button allow you to grab any fixture on the fly

* USB disk backup and uploaded

* Power failure memory

* Data backup & restore with U-disk

* LED lamp connector

* Power input: DC 9-12V 1000mA

* Audio input: by built-in microphone or line in, 100mv-1vpp

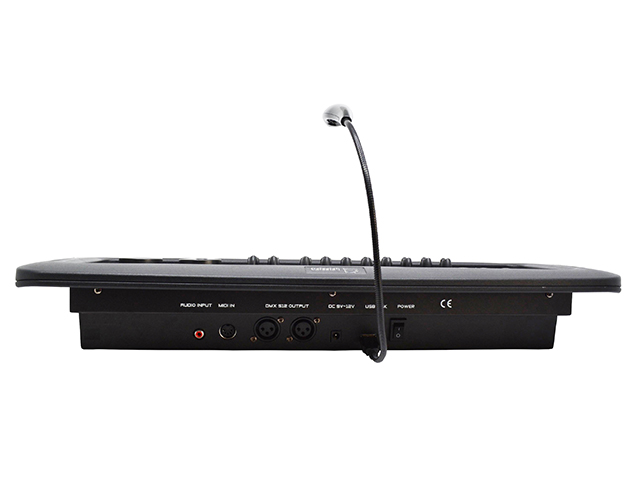

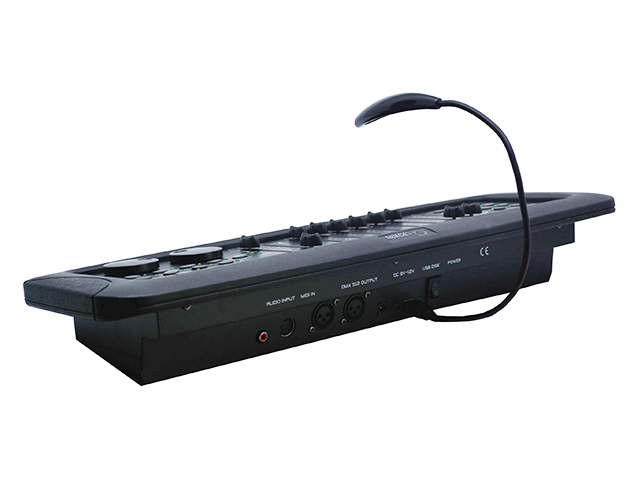

* DMX in/out: 3 pin male/female XLR

* Midi in: 5 pin multiple socket

* Dimension : 527mm × 192mm ×87mm

* Net Weight: 2.65kg

Up to CE standard, UL standard and GB7000.15-2000 standard.
