1357-Wireless Box

  • PID:1357
  • Wechat:TC18928719131,TC18928719182
  • Phone: (8620)36399170
  • Tel: (8620)36399170
  • Email: info@showart.com.cn
  • FEEDBACK

Technical Parameter

Tricolor LED displaying
126 channels, automatic jumping frequency
High anti-jamming ability to ensure working reliability.
7 groups ID code settable, User can use 7 groups individual wireless net without any interfere each other in the same place.
Input voltage: AC88~256v 50/60HZ
Communication distance: 300M
Work frequency section: 2.4GHz ISM band, 126 channels frequency section.
Receiver sensitive: -106dBm

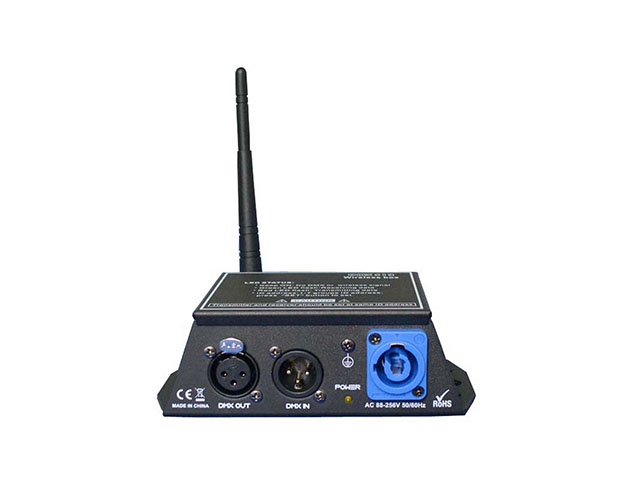

DMX signal port: 3 Pin plug
Antenna configuration: standard 100mm spiral SMA antenna, the other optional large gain antenna

ID code and LED color corresponding correlation:
1: RED
2: GREEN
3: RED+GREEN=YELLOW
4: BLUE
5: RED+BLUE=PURPLE
6: GREEN+BLUE=CYAN
7: RED+GREEN+BLUE=WHITE


Up to CE standard, UL standard and GB 7000.15-2000 standard
