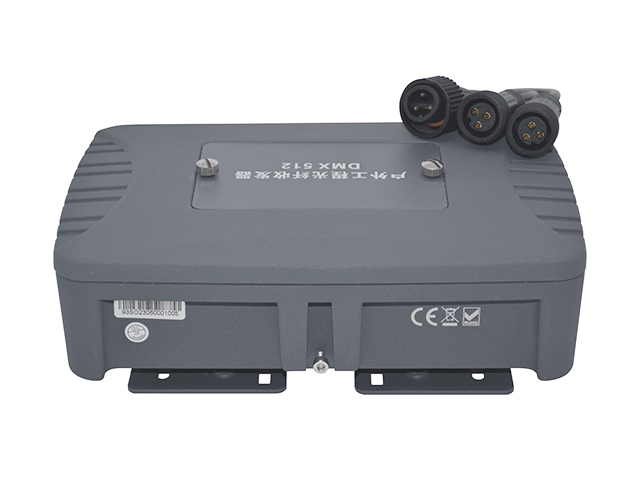

1393-Fiber Media Converter (DMX512)

  • PID:1393
  • Wechat:13825163720; 18928719131
  • Phone: (8620)36399170
  • Tel: (8620)36399170
  • Email: info@showart.com.cn
  • FEEDBACK

Technical Parameter

* Single-mode fiber media converter, transmitting and receiving data on one single fiber

* It can convert between electrical and optical signal. Long-distance data transmission through optical fiber

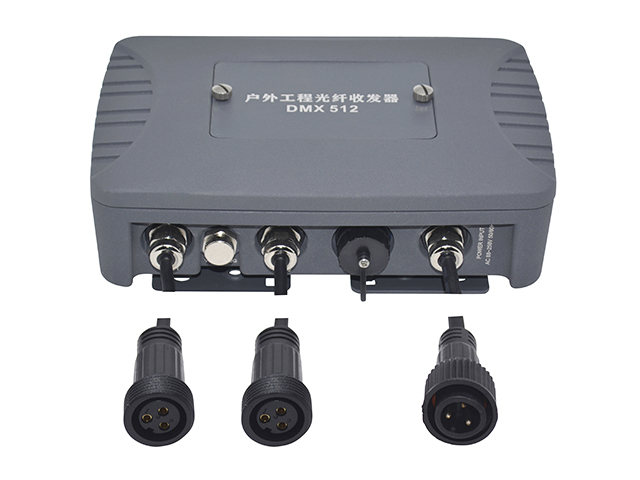

* Providing 2 DMX512 ports and a SC fiber port

* Stable data transmission, high speed without delay, strong anti-interference ability

* Each port has LED indicator

* Cast aluminum material, weatherproof, UV resistant

* Wave Length: 1310nm

* Transmission distance: up to 20 km

* Power input: AC 88~256V 50/60Hz

* Dimension: 225mm×150mm×85mm

*  Net Weight: 1.7kg (not include AC&DMX cable)



Up to CE standard, UL standard and GB7000.15-2000 standard
