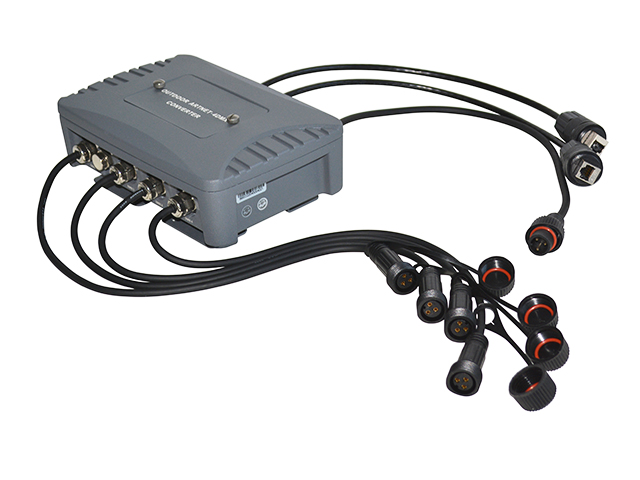

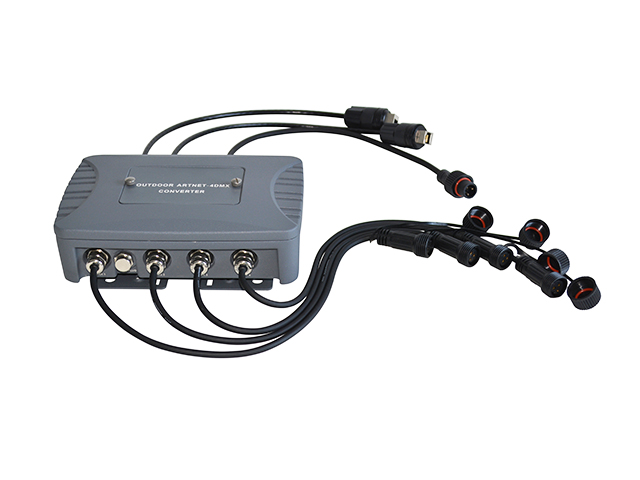

1389-Outdoor ARTNET-4DMX Converter
- PID：1389
- Wechat：13825163720; 18928719131
- Phone: (8620)36399170
- Tel: (8620)36399170
- Email: info@showart.com.cn
- FEEDBACK
Technical Parameter
Supports 4 ArtNet universes, total 2048 channels
Use the Switch to connect multiple converters to expand the channel, which can control 32768 universes, a total of 16777216 channels
Ethernet I/O based on high speed switch, without linking delay.
Compatible with the following protocols: ArtNet, DMX 512 and RDM.
It is used for extending the DMX output port of Tiger touch, MA Console and MADRIX software.
The 4 DMX ports can all be configured as inputs or outputs.
100% electrical isolation between all in/outputs: problems on 1 port will not influence the other ports.
Independent Driver for each waterproof DMX 3-pin XLR.
Cast aluminum material, weatherproof, UV resistance and good applicability.
Wide input stable electric power supply, suitable for voltage input of different countries.
Input Voltage: AC88～256V 50/60Hz
Dimension:225mm ×145mm × 74mm
Net Weight: 1.85Kg
Up to CE standard, UL standard and GB 7000.15-2000 standard
Use the Switch to connect multiple converters to expand the channel, which can control 32768 universes, a total of 16777216 channels
Ethernet I/O based on high speed switch, without linking delay.
Compatible with the following protocols: ArtNet, DMX 512 and RDM.
It is used for extending the DMX output port of Tiger touch, MA Console and MADRIX software.
The 4 DMX ports can all be configured as inputs or outputs.
100% electrical isolation between all in/outputs: problems on 1 port will not influence the other ports.
Independent Driver for each waterproof DMX 3-pin XLR.
Cast aluminum material, weatherproof, UV resistance and good applicability.
Wide input stable electric power supply, suitable for voltage input of different countries.
Input Voltage: AC88～256V 50/60Hz
Dimension:225mm ×145mm × 74mm
Net Weight: 1.85Kg
Up to CE standard, UL standard and GB 7000.15-2000 standard
