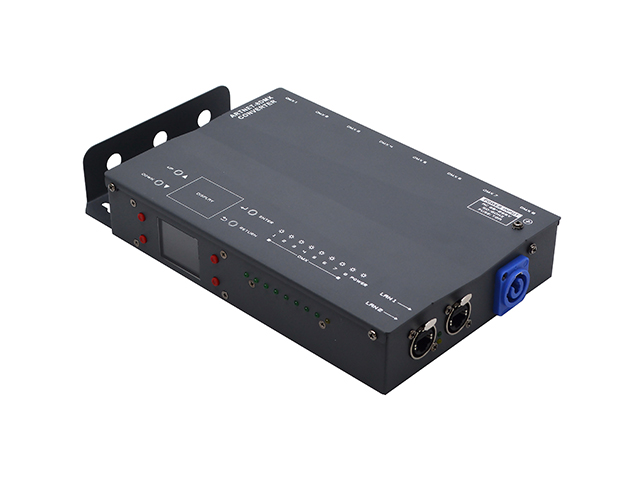

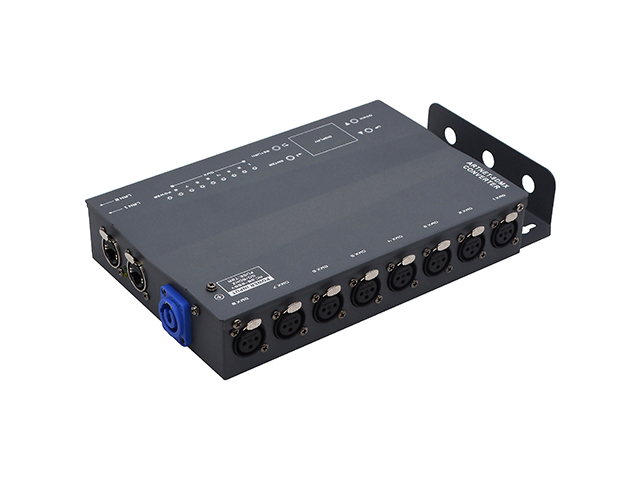

1391-ARTNET-8DMX Converter

  • PID:1391
  • Wechat:13825163720; 18928719131
  • Phone: (8620)36399170
  • Tel: (8620)36399170
  • Email: info@showart.com.cn
  • FEEDBACK

Technical Parameter

Supports 8 ArtNet universes, total 4096 channels.

Serial connection possible, which can control 32768 universes, a total of 16777216 channels

Ethernet I/O based on high speed switch, without linking delay.

Compatible with the following protocols: ArtNet, DMX 512 and RDM.

It is used for extending the DMX output port of Tiger touch, MA Console and MADRIX software.

The 8 DMX ports can all be configured as inputs or outputs.

DMX ports: Neutrik 3pins XLR

100% electrical isolation between all in/outputs: problems on 1 port will not influence the other ports.

TFT display shows parameters.

LED indicators for each input and output

PowerCON connector is useful for any rental and mobile shows

Multiple installation methods to meet variety places use purpose

Wide input stable electric power supply, suitable for voltage input of different countries.

Input Voltage: AC88~256V 50/60Hz

Dimension: 270mm ×160mm × 45mm

Net Weight: 1.25Kg

Up to CE standard, UL standard and GB 7000.15-2000 standard
