1371-Light Control Panel

  • PID:1371
  • Wechat:TC18928719131,TC18928719182
  • Phone: (8620)36399170
  • Tel: (8620)36399170
  • Email: info@showart.com.cn

Technical Parameter

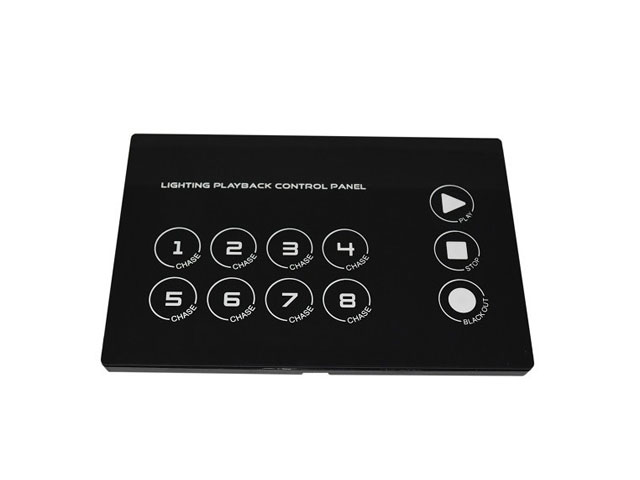

Choose 1 among the 8 different programs

Touch way: capacitance

Panel material: tempered glass

Installation: 86 type bottom box

Communication protocol: Rs485

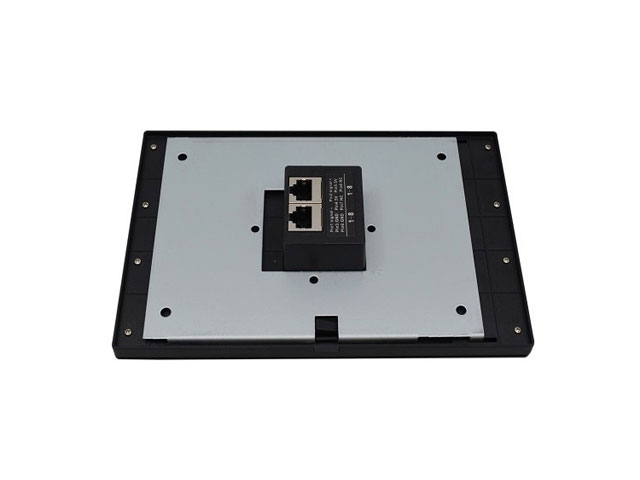

Wiring way: network cable

Can connect the recorder, run the control program, stop and blackout

Dimension: 202 X 135 mm

Net Weight: 0.57Kg


Up to CE standard, UL standard and GB7000.15-2000 standard
