1304-DMX-240A console_TONTRON PHOTOELECTRIC CO.,LIMITED

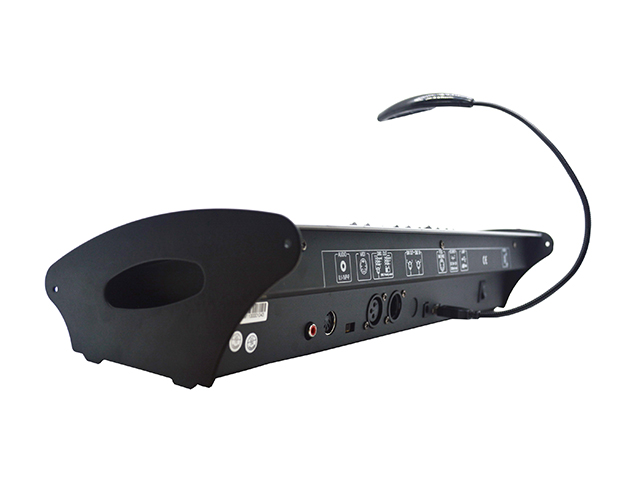

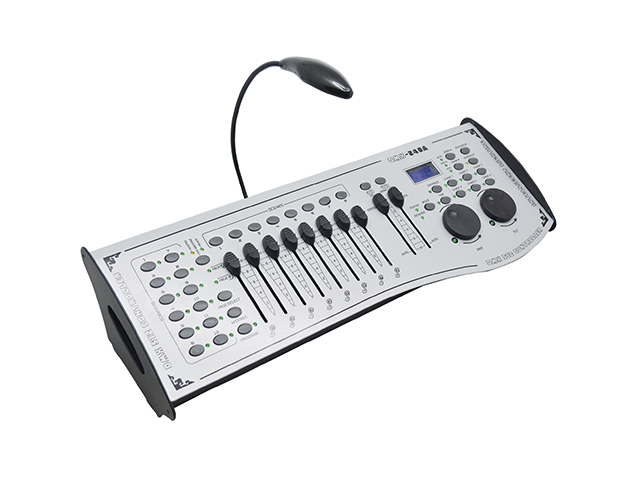

1304-DMX-240A console

Technical Parameter

* Each scene can store independent time and fade time

* Each step of Chase can store independent time and fade time

* Auto run while connect to electric

* 12 scanners of 16 channels each

* 30 banks have 8 programmable scenes each

* 6 programmable chases of 85 steps each

* 8 slider for manual control of channels

* 2 assignable wheels for easy of movement

* In fade mode, ALL (all channel) or X/Y only could be selected separately

* Fine adjustment for Wheel pan and TILT

* The data of console can be sent and received between 2 units via CANNON signal cable

* Midi control over banks, chases and blackout

* LED lamp connector

* Power input: DC 9-12V 1000mA

* Audio input: by built-in microphone or line in, 100mv-1vpp

* DMX in/out: 3 pin male/female XLR

* Dimension : 482mm × 190mm ×90mm

* Net Weight: 2.6KG

Up to CE standard, UL standard and GB7000.15-2000 standard
