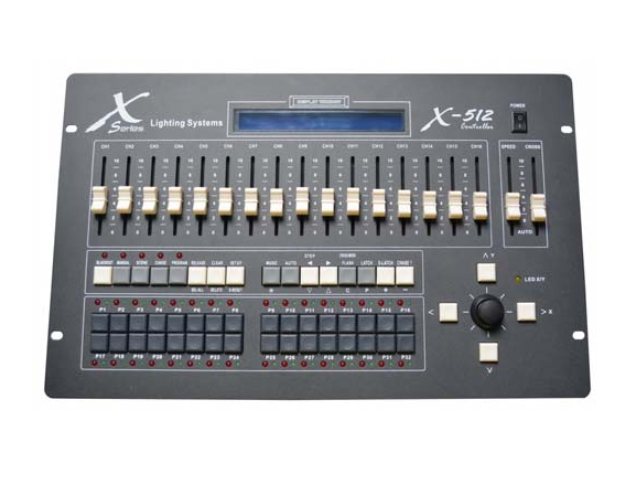

1311-X-512B console

  • PID:1311
  • Wechat:TC18928719131,TC18928719182
  • Phone: (8620)36399170
  • Tel: (8620)36399170
  • Email: info@showart.com.cn
  • FEEDBACK

Technical Parameter

 DMX512/1990 Standard

 512 channels

 LCD display with backlight

 Up to 32 scanners may be connected with a maximum of 16 channels each

 Assignable joystick for easy of movement, four keys fine adjustment

 Manual operate enable 8 chases and 32scenes can be run at the same time

 32 chases (at most 120 steps for each chase)

 3840 chase steps

 Range of cross time: 0S-25.5S

 Range of speed time: 0.1s-25.5S

 Each chase speed and cross time can be saved automatic

 The music trigger source can be selected between audio line input or inbuilt microphone

 Auto save last running data when power off or disconnect electric suddenly. Console will auto run continue while power ON or connect to electric

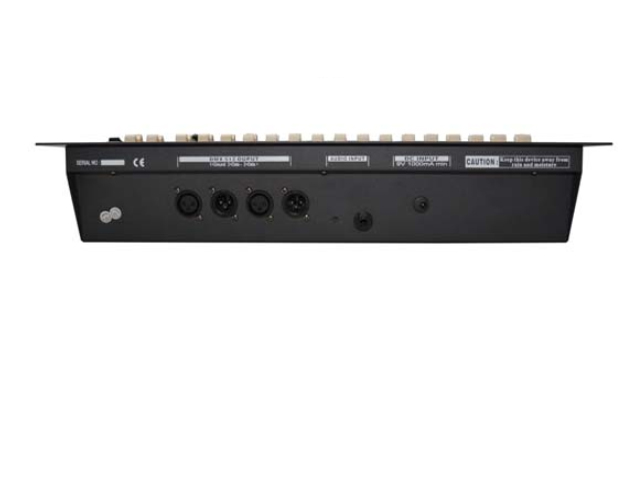

 DMX signal output connector: XLR-D3F X4

 Power supply: DC9V 1000mA

 Dimension: 482mm×300mm×100mm

 Net Weight: 5 Kg


Up to CE standard, UL standard and GB7000.15-2000 standard
