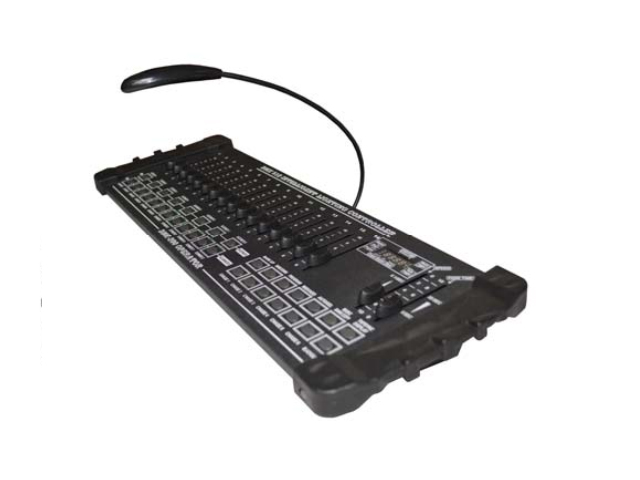

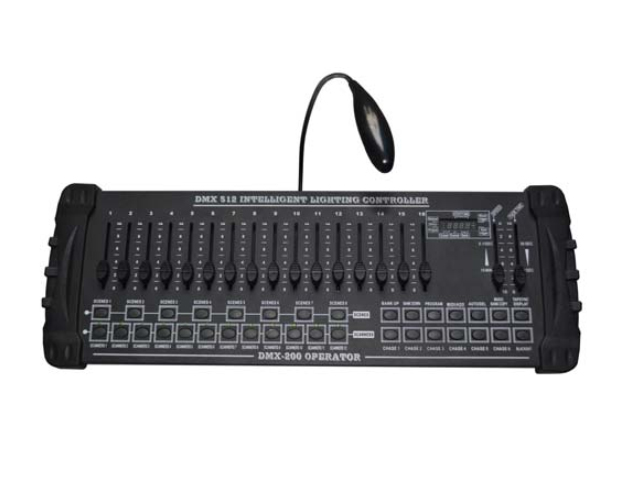

1309-DMX-200 console

  • PID:1309
  • Wechat:TC18928719131,TC18928719182
  • Phone: (8620)36399170
  • Tel: (8620)36399170
  • Email: info@showart.com.cn

Technical Parameter

 DMX512/1990 Standard

 Total 192 output channels

 30 banks have 8 programmable scenes each 6 programmable chase have 240 scenes each

 16 slider for manual control of channels

 Midi control over banks, chases and blackout

 Record up to 6 programmable chases with fade time and speeds

 LED function and program display

 Built in microphone for music trigger

 Auto mode program controlled by fade time sliders

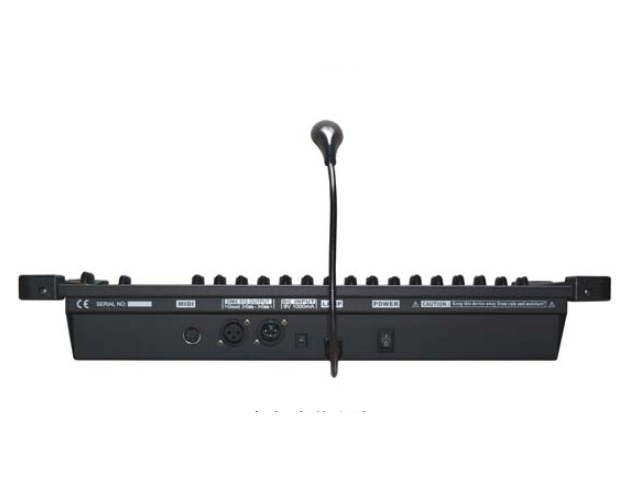

 DMX in/out: 3 pin male/female XLR

 LED lamp connector

 Power input: DC 9V 1000mA

 Dimension: 520mm×183mm×73mm

 Net Weight: 2.6 kg

Up to CE standard, UL standard and GB7000.15-2000 standard
