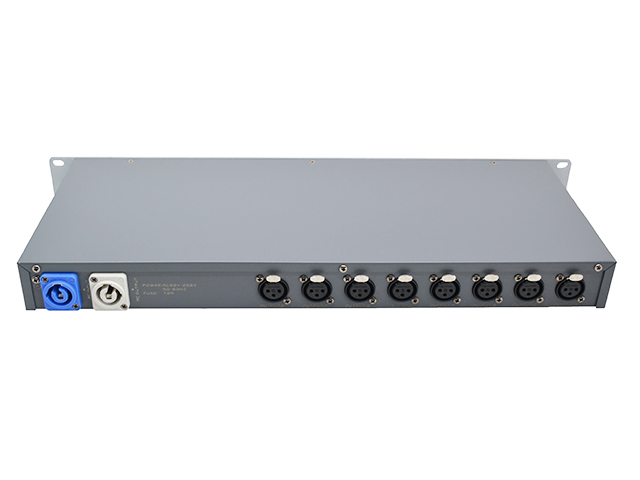

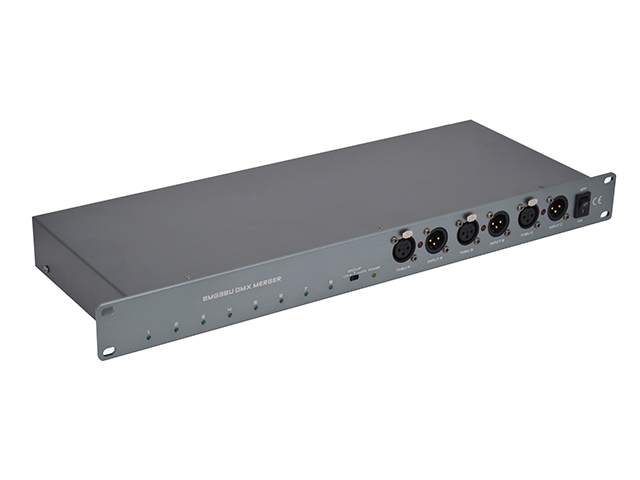

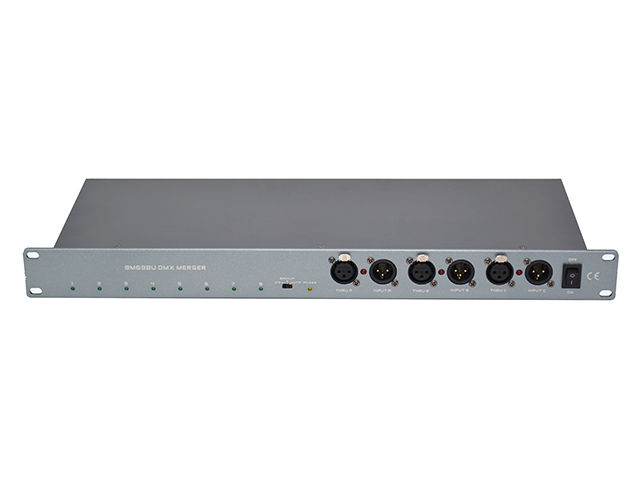

1380-8MG3BU DMX Merger

  • PID:1380
  • Wechat:13825163720; 18928719131
  • Phone: (8620)36399170
  • Tel: (8620)36399170
  • Email: info@showart.com.cn

Technical Parameter

* DMX 512/1990 Standard

* 3 DMX inputs and 8 DMX outputs

* There are three modes of the Merger to control: LTP/HTP/Backup

* LTP: The DMX signal is sent to the Port OUTPUT 1-8 from the merging of the Port Input A, B and C. It will compare the values on the inputs and will send the last changed value to the Port OUTPUT1-8

* HTP: the highest value of 3 identical channels from 3 DMX-signals will have priority

* Backup: when input A DMX- signal fail, input B DMX-signal take over immediately. When both input A & B DMX- signal fail, input C DMX-signal take over immediately

* Independent input and output signal

* Input and output ports use Inrush Protection(include earth cable of signal)

* Each DMX output has super driving ability Each input and output has LED indicator

* Wide input stable electric power supply, suitable for voltage input of different countries

* Dimension : 482mm ×173mm × 46mm

* Net Weight : 1.75kg

* Power input : AC88~256V , 50/60Hz

Up to CE standard, UL standard and GB 7000.15-2000 standard
