1358-8 Port DMX-ARTNET Ethernet

  • PID:1358
  • Wechat:13825163720; 18928719131
  • Phone: (8620)36399170
  • Tel: (8620)36399170
  • Email: info@showart.com.cn
  • FEEDBACK

Technical Parameter

Supports 8 ArtNet universes, total 4096 channels.

Serial connection possible, up to 32 units can be connected.

Ethernet I/O based on high speed switch, without linking delay.

Compatible with the following protocols: ArtNet, DMX 512 and RDM.

It is used for extending the DMX output port of Tiger touch and MA Console.

The 8 DMX ports can all be configured as inputs or outputs.

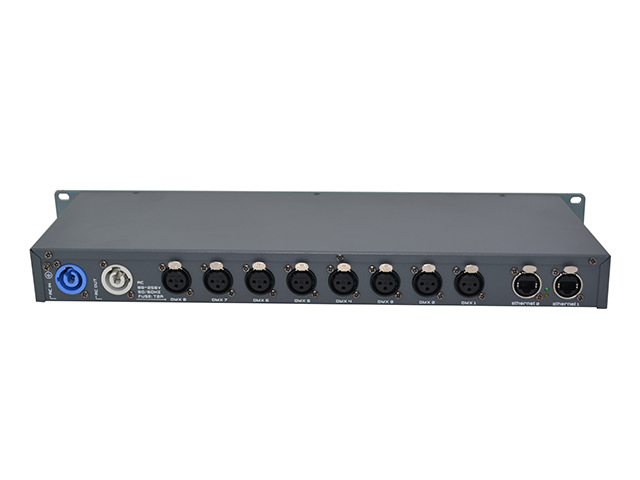

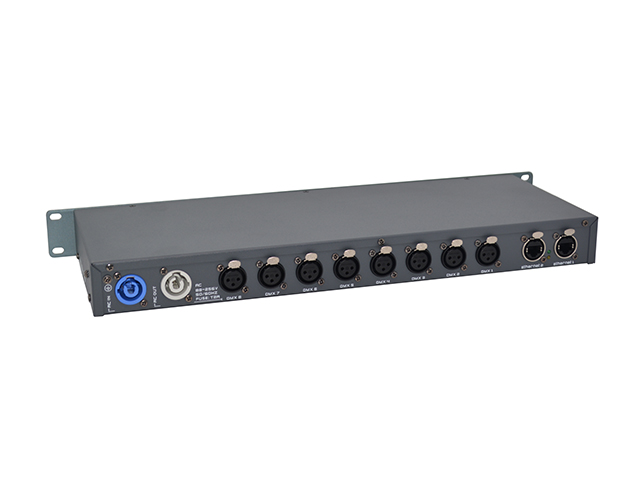

DMX ports: Neutrik 3pins XLR (Option: 5 pins XLR ).

100% electrical isolation between all in/outputs: problems on 1 port will not influence the other ports.

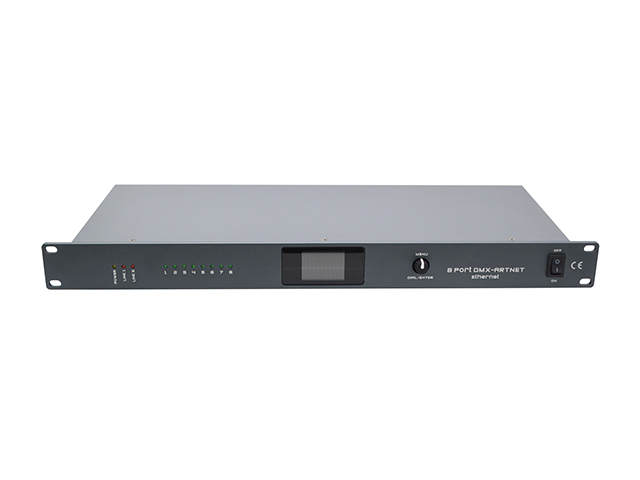

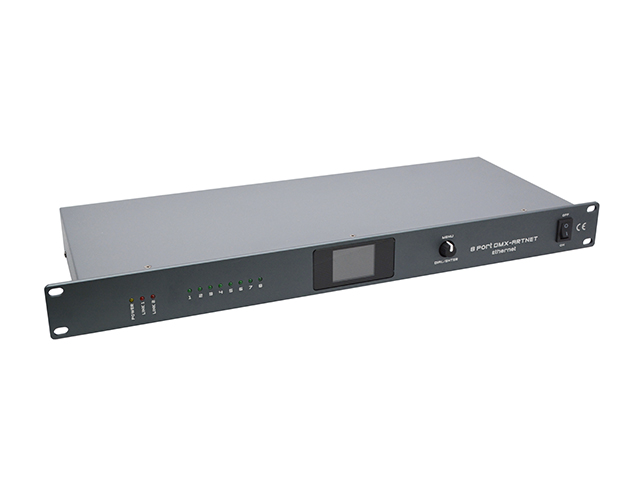

TFT display shows parameters.

LED indicators for each input and output.

Wide input stable electric power supply, suitable for voltage input of different countries.

Input Voltage: AC88~256V 50/60Hz

Dimension: 19" 1U, 482mm ×168mm × 44 mm

Net Weight: 1.7Kg


Up to CE standard, UL standard and GB 7000.15-2000 standard
